Gymnastics Rig Guide: Rig vs Rack, Anchoring, Spacing, and Attachments

A gymnastics rig is a long steel frame of linked uprights and crossmembers that lets several people do pull-ups, ring work, and barbell lifts at once. A power rack serves one lifter, while a rig serves a group. As of Nov 2026, listed rigs run from about $1,100 for one wall-mounted bay to about $3,600 for a 24-foot freestanding frame. Your ceiling and what you can anchor to will usually decide the design.

Gymnastics rig vs power rack

REP Fitness says its rig differs from a rack through added height and more connector lengths. Its rig uprights are 108 inches, compared with 80 or 93 on its 4000 and 5000 Series racks. Stations also share uprights: four PR-5000 racks would list around $3,700, while a 14-foot 5000 Series rig with four barbell stations lists around $2,600. The parts differ, so compare lists.

“Gymnastics” here describes bar, ring, and rope stations, not competition apparatus. The 2017 FIG norms put ring attachment points 580 cm up, about 19 feet, on a frame held by tension cables.

Wall-mounted vs freestanding rigs

The freestanding package costs little more and doubles the barbell stations, so we’d choose a wall rig mainly when depth is the limit.

Pull-up bars and rings

Bars differ by diameter and how many people share them. REP Fitness’s 72-inch connector has 69.4 usable inches, enough for two athletes by its account. Torque’s multi-grip cross has three 1.25-inch grips plus a 2-inch bar, and Valor Fitness’s crossmember uses 32 mm. REP Fitness says some 4000 Series bars sit at staggered heights unless you use its rig-specific bar.

FIG sets a 2.8 cm ring profile and 50 cm between attachment points, about 1.1 and 20 inches. REP Fitness sells 1.11-inch and 1.25-inch rings, the larger with 7.5 or 14-foot straps. Bells of Steel lists 102-inch straps and 440 lb total capacity. We’d start near shoulder width. Without a rig, Titan’s ceiling mount adjusts from 12 to 26 inches and spans multiple joists.

Spacing and ceiling clearance

Rigs mostly use a barbell bay around 4 feet and a longer span around 6 feet. REP Fitness uses 41 and 72-inch connectors, Valor Fitness 3.5 and 6-foot crossmembers, and Torque 4 and 6-foot crosses. REP Fitness’s 14-foot parts list implies a 4, 6, 4 pattern, though it doesn’t say so.

Our arithmetic: an 86-inch bar centered in a 50.8-inch bay overhangs about 18 inches per side, so two bars leave roughly 3 feet across a 6-foot span. We allowed 7 feet of lifting zone per side, since Hammer Strength specifies 7 by 10 feet for one half rack and Torque lists 112.1 by 118.4 inches.

For height, check more than the frame:

• Tall uprights: Valor Fitness suggests 8.25 feet for lifting and 12 or 15 feet for ropes and rings.
• High anchors: Torque’s flying pull-up gives rings a 10-foot anchor and raises an X-RACK to 117.1 to 127.5 inches.
• Stored bars: Torque’s 83.6-inch TR1 needs 95 inches with a 20 kg bar in hanging storage.
• Muscle-ups: We estimate about 3 feet above the bar. REP Fitness says its connector can sit anywhere along the upright, so a lower bar can solve a low ceiling.

Anchoring and floor requirements

Your manual overrides anything here. Torque’s documents are specific enough to serve as an example:

• Floor-mounted X-RACK: The manual requires floor anchors.
• Freestanding X-RACK: Torque says normal squats and presses don’t need anchors, but suspension straps call for anchoring or weighting the frame, then testing it.
• X-CREATE: Packages must bolt to a concrete subfloor, with wall brackets offered as an alternative on some uprights.
• Concrete: Its anchoring sheet requires professional installation, with 3/8 by 3-inch anchors and two per X-RACK upright.
• Rubber or carpet: The sheet recommends cutouts so base plates sit on the slab. Plan for this before laying rubber flooring.
• Wood studs: Wall-mounted X-RACKs need floor and wall anchors. The manual shows a header board on 16-inch studs, 3/8-inch lag bolts, and at least 200 lb of pull-out strength per anchor.

REP Fitness’s stringer handles 1,000 lb “if mounted properly,” by its account. Concrete anchors are extra, and it advises against ISO Arms or Spotter Arms on it because of possible wall damage. Its rig FAQ names concrete, single 4-foot bays on studs, and 24-inch stud spacing as stringer setups, so ask about a long rig on 16-inch studs.

We found no slab thickness figure on these pages, so ask a contractor or structural engineer.

Group training layouts

These are our suggestions, not maker rules:

• Island: A freestanding rig with barbells on both long sides and bodyweight stations in the 6-foot spans suits mixed-ability classes.
• One wall: A wall rig keeps the room open for conditioning work.
• Separate the swingers: Put rings and kipping bars at the end of a run, away from lifting zones.

Check user limits too: Torque’s X-RACK manual gives a 300 lb maximum user weight unless a part says otherwise.

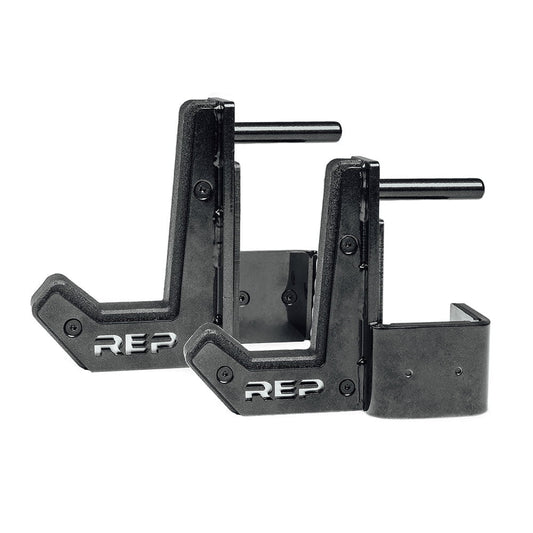

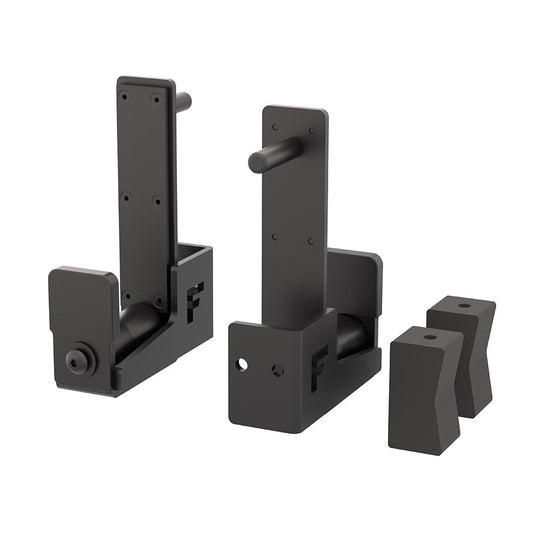

Common rig attachments

Fit is the usual catch. REP Fitness’s 4000 Series uses 5/8-inch holes and its 5000 Series uses 1-inch holes. It won’t guarantee other brands’ parts, and it says older 2 x 3-inch rigs won’t take its components. Our REP Fitness attachment guide and Torque guide go deeper.

Rig buying criteria

Torque cuts outdoor use to 3 years on frame and welds. REP Fitness lists lifetime coverage on rack frames and structural welds, though that page doesn’t name rigs.

What a rig costs

Safety

• Locate services first. Torque warns that wires and pipes can run under a floor.
• Use every anchor. Torque’s wall-mount steps require all locations.
• Test ring anchors. Load the straps gradually from a low position.
• Supervise beginners. Add coaching and suitable matting for bar and ring work.

If you have a shoulder, wrist, or back condition, ask a physician or physical therapist before starting ring or kipping work.
