Gym Rubber Tile Flooring: Thickness, Edges, Density, and Coverage

Gym rubber tile flooring is modular flooring sold as squares, usually 2 x 2 ft or about 1 m, from 6 mm to 1 inch thick. Choose the thickness by what you drop, the edge by how much the floor will shift, and the count by the tile’s net size after any interlock. As of Nov 2026, covering about 100 square feet runs from about $440 for 15 mm tiles to about $1,000 for 1 inch tiles. For rolls, mats, turf, and subfloor checks, start with our gym floor material guide.

Tile thickness and format

Bigger tiles mean fewer seams, but each one is heavier. A 2 x 2 ft UltraTile is 16 lb, a 1 m Bells of Steel mat is 39 lb, and Flooring Inc’s 4 x 6 ft tile is about 105 lb. Small tiles are easier on basement stairs and waste less around posts.

Makers’ thickness guidance is mostly for rolls, and our gym floor guide covers that along with noise test data.

Interlocking vs square edge

Interlocking tiles resist shifting and can be laid loose. The downsides are coverage and compatibility. Flooring Inc’s 3/4 inch tile is nominally 4 x 6 ft but measures 45 x 67.5 inches interlocked, about 12% less than the name suggests. REP Fitness won’t guarantee its tiles fit its pre-August 2023 version or other brands, Titan says its tiles don’t fit those bought before November 2023, and a French Fitness listing (retailer) warns that earlier production may not lock with current tiles. If you expect to expand, buy extra now.

Square-edge tiles look cleaner at walls, and the stated size is the real coverage. They rely on weight to stay put, so in our judgment they make the most sense at 15 mm and up.

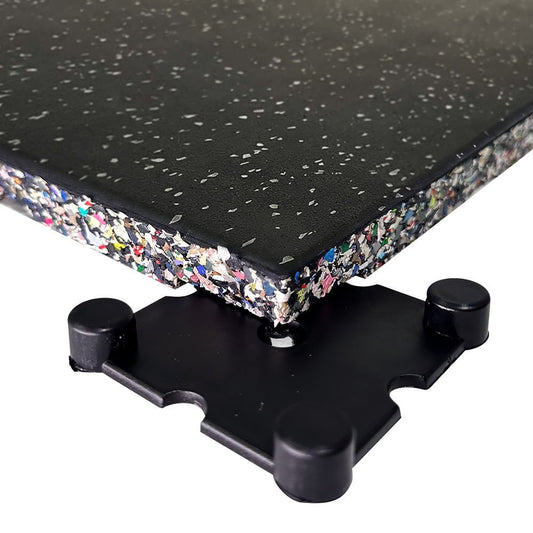

Connector systems sit between the two. Greatmats’ UltraTile has straight edges and can be glued to a Quad Blok connector, which makes a floating floor. The Bells of Steel 24-inch mat includes connector clips.

Density: what the listings show

Almost no one publishes density, and only Greatmats gave us a hardness figure, Shore A 60. You can estimate density from size and weight:

Denser isn’t automatically better. A chart like this can’t tell you how a tile absorbs a drop, since none of these makers publish comparable impact data.

Adhesive vs dry lay

Dry lay is the default for home gyms. Flooring Inc says adhesive usually isn’t needed and suggests double-sided tape around the perimeter if tiles move. It also advises starting from chalk lines 24 inches off two walls, cutting perimeter tiles last, and leaving a wall gap about as wide as the tile is thick.

Glue-down suits permanent commercial floors, but it’s hard to undo. For its polyurethane glue, about $205 per 2.5 gallons, REP Fitness calls for a clean, dry, level floor, a 1/16-inch notched trowel, 60 to 90 degrees F, and laying flooring within 30 minutes. It says a gallon covers about 90 square feet. Its tape, about $50 a roll, is its pick for less permanent setups. Both are pitched mainly at rolls, so check with your tile’s maker, and run the moisture checks in our floor guide before gluing.

Coverage math

Tiles across = room width ÷ net tile width, rounded up. Do the same for length, then multiply. Here’s a 10 x 10 ft room:

Titan’s small tile needs 49 pieces, and buying full packs leaves 11 spare. The Bells of Steel mat needs an order over 500 lb for freight, or pickup in Indianapolis, so nine mats alone wouldn’t qualify. Flooring Inc’s calculator recommends adding 5% for cuts and spares, which is a fair default.

Odor

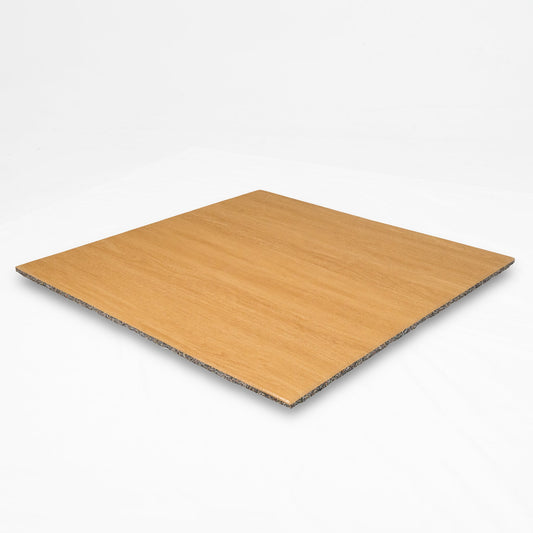

Tile listings handle rubber smell with adjectives. REP Fitness says low odor, Bells of Steel says non-smelly, and Force USA says low-VOC. Those are seller claims. The stronger signal we found is Greatmats listing a FloorScore certificate for UltraTile, so ask other sellers for the same kind of paper.

We found no peer-reviewed study of rubber tiles in home gyms, and our floor guide covers the nearest evidence. Air new tiles out first, and take more care in a closed basement or next to bedrooms.

Commercial vs home use

Greatmats lists 15 years limited on UltraTile, though it’s a custom order that can’t be returned.

Models and prices

Safety

• Lift heavy tiles with a helper. A 4 x 6 ft tile weighs about 105 lb.
• Cut carefully. Titan calls for a sharp utility knife and a straight edge.
• Fix trip edges. Trim tabs at walls, and bevel where tiles meet another floor.
• Check grip when wet. Flooring Inc rates its tile for wet and dry use, but test any floor you sweat on.
• Keep racks stable. A rack on thin tiles can rock, so follow the rack maker’s instructions if you bolt down.
