Gym Floor Material Guide: Rubber, Foam, Turf, and Platforms

The best gym floor material for most weight rooms is dense rubber: 3/4 inch mats or tiles where you lift, or rolled rubber for wall-to-wall coverage. Foam works for stretching, turf for sleds, and a platform for heavy drops. Vinyl is a finished floor to protect, not a lifting surface. As of Nov 2026, 3/4 inch mats for a one-car bay come to about $600 to $1,100 before delivery. Rubber reduces impact noise, but it won’t soundproof a floor, and no mat fixes a weak or damp subfloor.

Gym floor materials compared

Horse stall mats. The usual garage floor. Tractor Supply’s 4 x 6 ft mat is listed at 94 lb in recycled vulcanized rubber, with prices that vary by store. REP Fitness’s version weighs 88 lb and is urethane-bound, which REP Fitness says gives less odor.

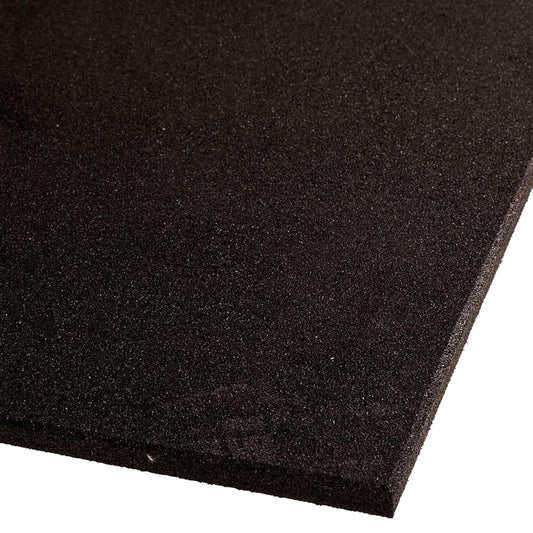

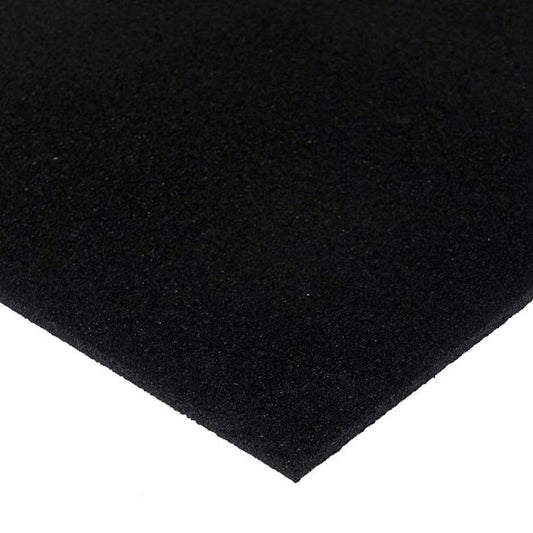

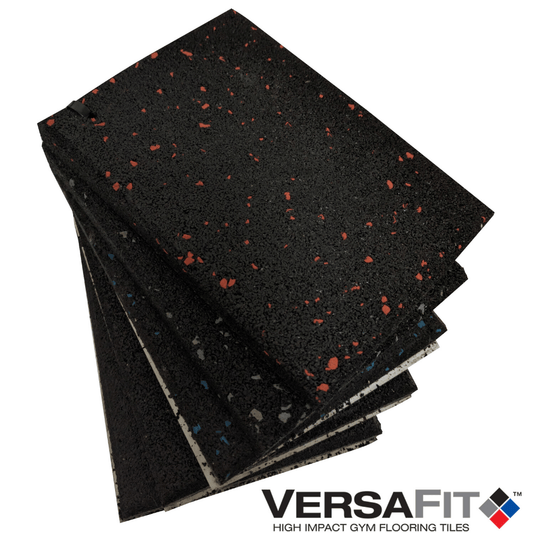

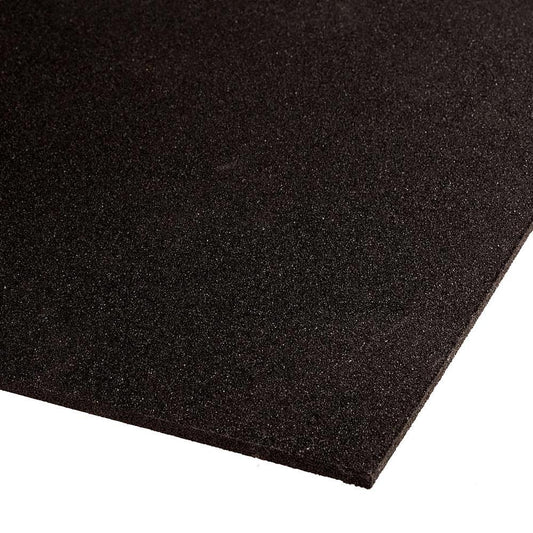

Rubber tiles. They’re easy to carry and cut, and you can replace a damaged one. Our rubber tile flooring guide compares thickness, edges, and coverage, and our VersaFit guide covers one large-format line.

Rolled rubber. Rolls leave the fewest seams. At 8 to 12 mm here, compared with about 19 mm for a stall mat, check the thickness against what you plan to drop.

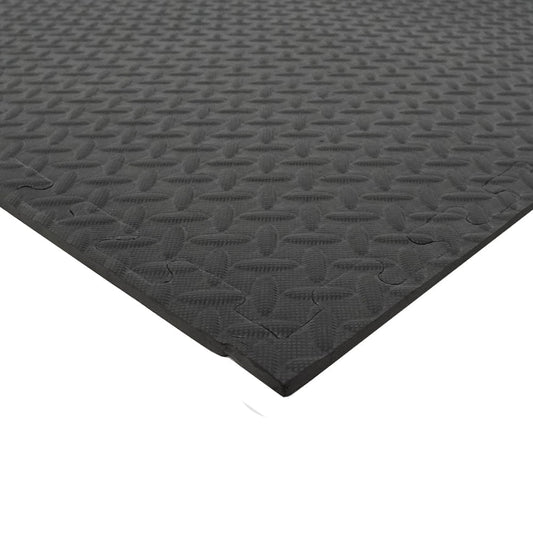

Foam. REP Fitness steers heavy squats, deadlifts, and Olympic lifts away from its rubber-topped foam tile and toward all-rubber floors.

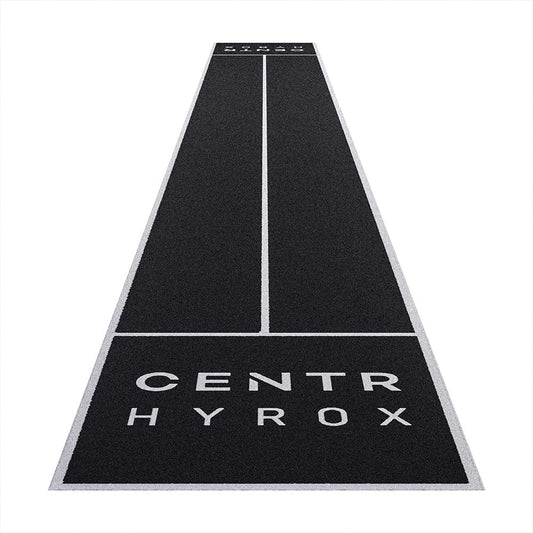

Turf. It gives a sled something to slide on. Titan’s roll is 10 mm and Bells of Steel’s is 25 mm. Our conditioning equipment guide covers sleds themselves.

Vinyl and LVT. Shaw warns against rubber or latex mat backings because they can discolor vinyl, and it recommends wide protectors under heavy items to limit dents. So a rubber mat laid straight on LVT may damage the floor you meant to protect. Ask your floor’s maker about a non-staining barrier first.

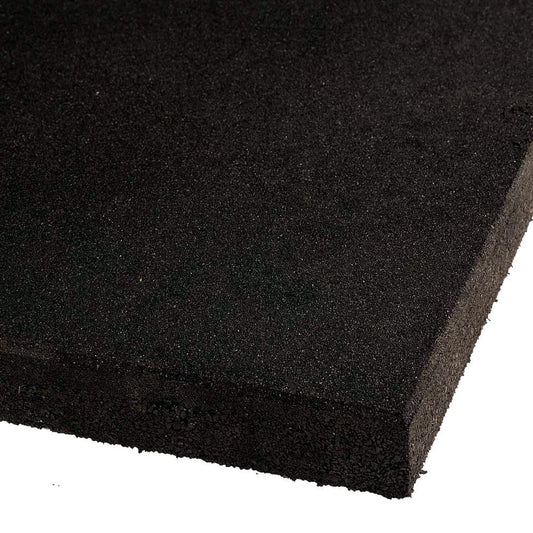

Deadlift platforms. These put the thickest rubber where plates land. Titan’s platform comes with four 1.6-inch tiles and space for your own plywood center, or with eight tiles.

What thickness and density actually do

Thickness gives an impact more distance to slow down. Density decides how far the rubber gives under a load, so firm rubber keeps rack feet from sinking and wobbling.

REP Fitness’s roll guidance is the clearest we found: 8 mm if you won’t drop anything, 9 mm for dropped bumpers, and 12 mm for bumpers and iron plates. Bells of Steel says its 6 mm cardio mats aren’t recommended for shock absorption above 100 lb. Those are maker statements, and we didn’t find an independent standard that sets a minimum thickness for home gyms.

Sellers rarely publish density, but you can estimate it from size and weight. By our arithmetic from rounded listed figures, REP Fitness’s foam tile comes to about 12 lb per cubic foot, Greatmats’ UltraTile about 48, Titan’s lifting tile about 55, and a Greatmats stall mat about 67.

Subfloors: concrete, wood joists, floor loads, and moisture

Concrete. A slab on grade is the easiest base. Clean it, deal with large cracks or high spots, and leave a perimeter gap about as wide as the flooring is thick, as Flooring Inc, where the Rubber Flooring Inc site now redirects, advises.

Moisture. The concern is what gets trapped under the rubber. For a rough check, tape clear plastic to the slab overnight and look for moisture under it. ASTM’s plastic sheet method was written for coatings and only indicates whether moisture is present. Calcium chloride and in-slab humidity tests measure it, so use one and ask the flooring maker for its requirements before gluing anything down.

Wood joists. Makers disagree, so follow your product’s instructions. REP Fitness says its rolls aren’t suitable over carpet, wood, or tile. Greatmats allows UltraTile on plywood but doesn’t recommend carpet, and Force USA says VersaFit works on hardwood and tile.

Floor loads. Rubber adds no strength. A JLC framing article lists residential design live loads of 40 psf for living areas, 30 psf for bedrooms, and 50 psf for passenger vehicle garages, and local codes vary. Take an example of 1,000 lb of rack, bar, and plates on a 4 x 4 ft footprint: 1,000 / 16 = 62.5 psf, above that 40 psf figure, before mats add about 4 psf. A design value isn’t a breaking point, and it doesn’t describe a dropped barbell either. On an upper floor, or with a heavy power rack package, ask a structural engineer.

Noise and vibration: what rubber can and can’t do

Most sellers say their floors reduce noise, and few give a number. The most useful data we found is a 2016 conference paper from Embelton, an Australian noise control company. It dropped a 10 kg kettlebell from 620 mm, 10 times per floor, over a 150 mm concrete slab, then measured noise in the room below and vibration in the slab.

The thin, dense layer, closest to a stall mat, gave the smallest noise reduction at about 9 dB. Every rubber-only build-up increased slab vibration, and only the mounted floors reduced it.

The authors’ company sells most of the tested materials. It’s one lab, one slab, and a weight far lighter than a loaded barbell, and it didn’t cover wood joists, so don’t apply these numbers to a timber floor.

If you share a wall or ceiling, lower the bar under control, skip the drops, and talk to an acoustic consultant before you spend money on flooring.

Odor and off-gassing from rubber

Expect a smell from new rubber. How much varies. One Greatmats stall mat listing says the mat has high odor and isn’t intended for home use, advises against crawl spaces and basements, and suggests airing it outside for a few days before use in a garage. REP Fitness advises a few days of airing for its urethane-bound and vulcanized mats.

We found no peer-reviewed study of rubber gym mats in home garages. The nearest evidence is indirect:

• Tire crumb turf. EPA’s research found many chemicals at higher air concentrations at an indoor field than at outdoor fields. It calls exposures likely limited, and its reports aren’t a risk assessment. Infill also isn’t a floor mat.
• French sports rooms. A 2026 study found airborne VOC levels similar to schools and homes. The abstract doesn’t tie anything to flooring.
• Portuguese health clubs. A 2023 study of eight clubs found total VOCs above protective thresholds and blamed cleaning products and disinfectants, with higher readings in small, poorly ventilated studios.

For a specific product, ask for evidence. FloorScore is an indoor air quality certification for hard surface flooring, adhesives, and underlayments, so ask whether a product carries it. Force USA’s “low-VOC” and Greatmats’ “low odor” labels are seller claims. Air new mats out somewhere ventilated, and take extra care with a closed basement or a room next to bedrooms.

Coverage math for a one-car garage bay

We’re assuming a bay 12 feet wide and 20 feet deep, which is 240 square feet. Measure yours and swap in your own numbers.

Compare by the square foot using each listing’s size and price, since a mat, a set of tiles, and a roll all cover different areas. Some rolls also get cheaper in volume or add freight, so price your exact order.

You may not need wall-to-wall. Four mats leave room for a rack and a place to lift, at a fraction of the money and weight.

Home vs commercial flooring

Embelton’s paper calls gyms a common source of complaints from neighboring tenants, and its mounted floors stood 115 to 137 mm tall, which affects doors, ramps, and ceiling height.

Models and prices

Safety

The practical risks are heavy mats, sharp knives, loose edges, and slick surfaces.

• Lift mats with a helper. A 3/4 inch mat weighs 88 to 105 lb and flops around.
• Cut carefully. Titan calls for a sharp utility knife and a straight edge.
• Remove trip edges. Tape or border loose corners, and recheck after a few weeks.
• Check grip when wet. Greatmats rates one mat slip resistant wet or dry, and Tractor Supply says to flip its mat button-side up where slip resistance matters.
• Keep racks on a firm base. Foam and thin tiles can let a rack rock. If you bolt one down, follow the rack maker’s instructions.
• Secure platforms. Titan strongly suggests fastening its frame to the floor when you use the band pegs.
