Lateral Raise Machine Guide: How They Load Your Shoulder and Who Needs One

A lateral raise machine guides your arms out to the side against a weight stack or plates, usually while you sit, so the side of your shoulder works without you balancing dumbbells. Compared with dumbbells, it can spread resistance differently across the arc and takes your grip out of the set. As of Nov 2026, dedicated machines list at about $2,200 to $7,700, with combo and rack-mounted options from about $250. Most home gyms don’t need one. This goes deeper than the brief mention in our t-bar row machine guide.

How a lateral raise machine loads the shoulder

A dumbbell always pulls straight down. Its torque on your shoulder depends on how far it sits sideways from the joint, which is close to zero at your side and greatest at shoulder height. So a raise feels easy at the start and hard at the top.

A machine replaces that pattern with its own. A cam or pulley sets the leverage on a selectorized model, and the lever arm and horn position set it on a plate-loaded one. Life Fitness says the Insignia follows the body’s natural strength curve, and Titan makes a similar claim. The authors of a 46-person training trial also note that cams can better match strength curves, but that trial measured biceps and quadriceps thickness. Treat the claim as unproven for any specific machine.

Two effects are easier to pin down. Pin numbers don’t convert to dumbbell pounds, because leverage differs by machine. And pads shift the load off your hands: the Tahoe retailer listing describes padded arms for the forearms and elbows, and Hammer Strength advertises zero-grip work arms.

Seated lat raise machine vs standing

Nearly every machine we found is seated. Life Fitness argues that sitting cuts body sway, and its store FAQ says standing brings in more stabilizers but invites momentum. That’s the maker’s reasoning, and we found no study comparing the two.

Standing frames do exist. The Taurus Pro Iso Standing Lat Raise, on a UK retailer’s site, measures 117 x 89 x 155 cm, about 46 x 35 x 61 inches. We lean seated for a shared floor because it’s easier to set up the same way each time, which is our judgment.

Plate-loaded vs selectorized

Plate-loaded machines cost less and usually have independent arms, so one side can’t help the other. The Hammer Strength model starts at 1 lb per arm, lists a maximum of three 25 lb plates, and suggests a mix down to 5 lb plates, so you can move in small steps. The Marin retailer listing shows 275 lb per side.

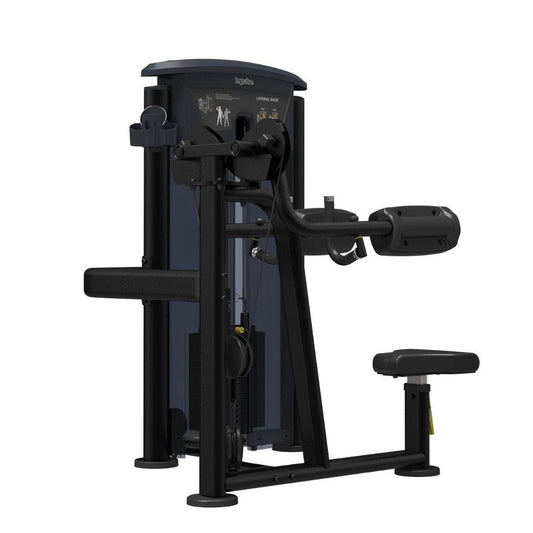

Selectorized machines change weight faster, which matters on a busy floor. Look closely at the increments. The Tahoe listing shows 15 lb plates, with 5.5 lb add-ons to bridge them. A Nautilus retailer listing shows 5 lb selection, and the Hammer Strength Select has a drop-down incremental weight. Stack size matters less here, in our judgment: 170 to 220 lb should outlast nearly anyone.

Arm pad and cam design

Check these when you sit in one:

• Pivot alignment. The Select line marks its axis of rotation in red, and the Nautilus listing mentions a highlighted axis. Line it up with your shoulder.
• Seat range. The Marin and Tahoe listings give 4 ft 10 in to 6 ft 6 in. The Insignia’s seat changes angle as it rises.
• Pads. Titan uses 10-inch forearm pads with fixed handles, and the Select adds pivoting handles.
• Torso support. Hammer Strength angles its back pad at 25 degrees and its arm castings at 7 degrees to line up the middle delt. That’s a design claim, and we found no independent test.

Who actually needs a lateral raise machine

Commercial gyms are the best fit: no dumbbells to fetch, and little to teach. Lifters whose grip or forearms quit early get a clear benefit from pad-driven arms. These are our judgments.

Most home gyms can skip it. A 5 to 50 lb hex dumbbell set from REP Fitness lists at about $1,100 and trains everything, while a dedicated machine costs more and does one job. Our adjustable dumbbell guide covers a smaller option. If you still want a guided path, Titan’s combo adds a shoulder press, and the Bells of Steel attachment mounts to Hydra or Manticore racks.

What deltoid research shows, and its limits

• Machines vs free weights, in general. A meta-analysis of 13 studies and 1,016 people found no difference in hypertrophy in direct comparison, though only five studies measured it. None of this isolates lateral raises.
• Cable vs dumbbell. In an eight-week trial, 24 trained men and women trained one arm each way. Side delt thickness rose 3.3% to 4.6%, with support for no difference. It’s small and short, and it used cables.
• Which exercises hit the side delt. A review of 33 EMG studies ranked abduction moves among the highest. In 13 experienced men, lateral raises reached 30.3% of maximum and shoulder presses 27.9%, against 5% for the bench press.
• Arm rotation. The review ranks raises with internal rotation highest, while a study of 10 bodybuilders found more middle delt activity with a neutral arm than with external rotation or a bent elbow. That’s unsettled.

EMG shows activity during a set, not growth. Our searches of indexed research found no study of a lateral raise machine itself, so a claim that one design builds bigger delts goes beyond the evidence.

Published specs by model

What a lateral raise machine costs

Safety

• Start light. Pin numbers don’t match dumbbell weights, so find your load gradually.
• Align before loading. Set the seat so your shoulder sits at the pivot, then test with little or no weight.
• Stop for shoulder pain. Sharp pain or pinching means stop. If you have a shoulder condition, ask a physician or physical therapist before training this movement.
